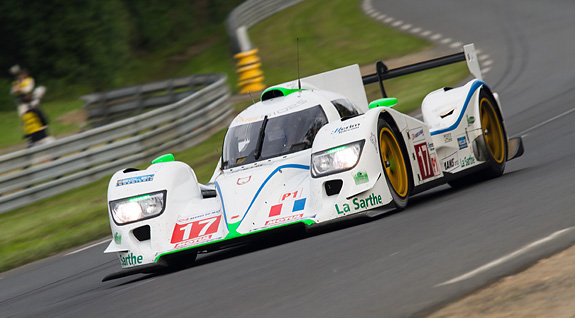

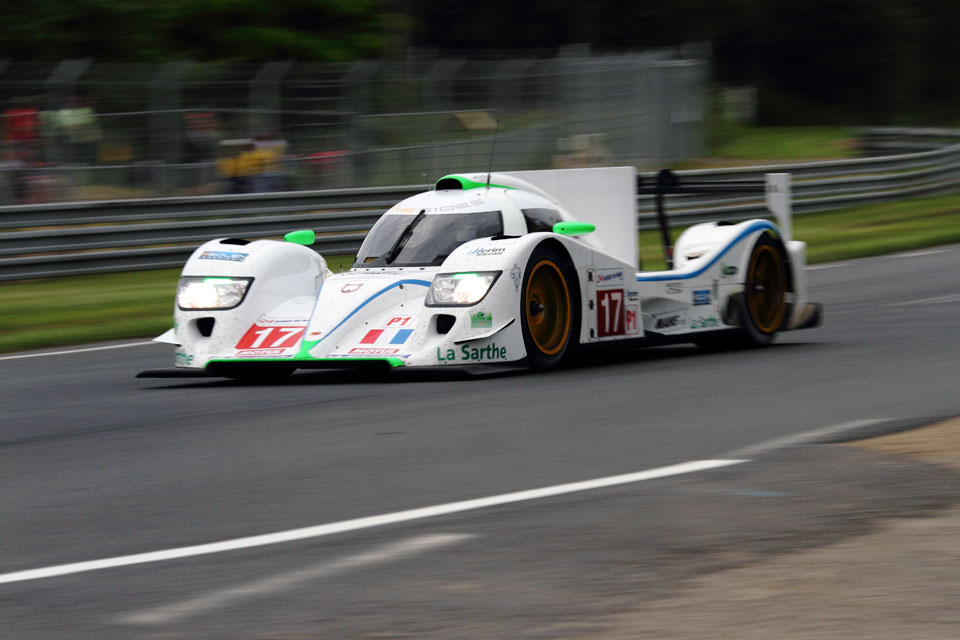

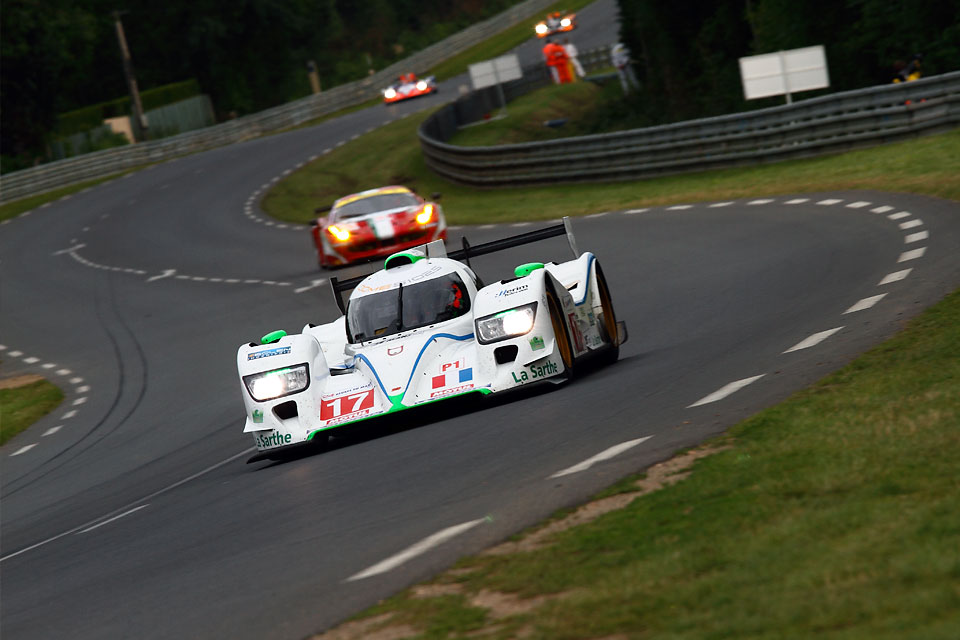

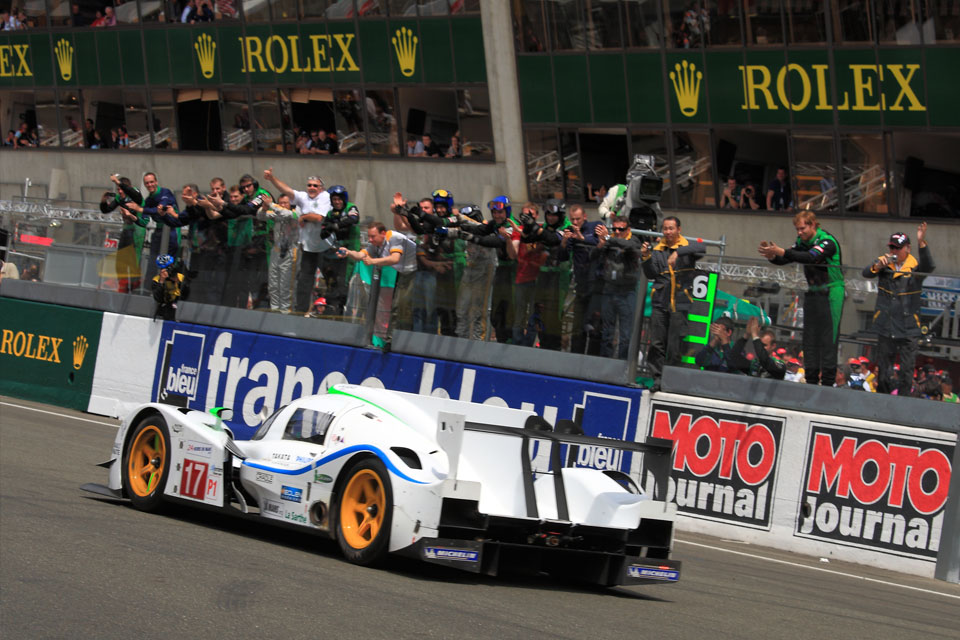

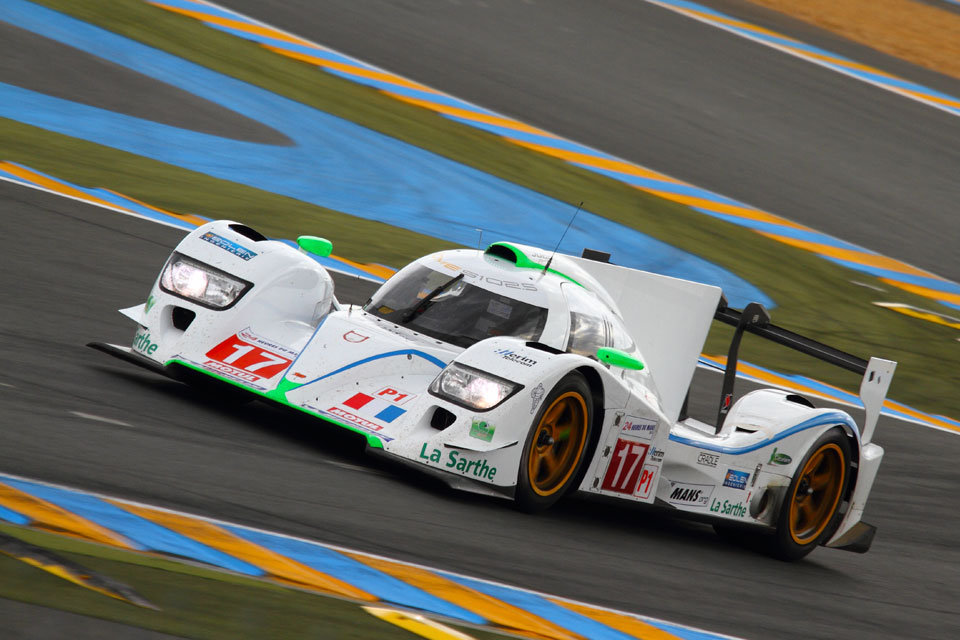

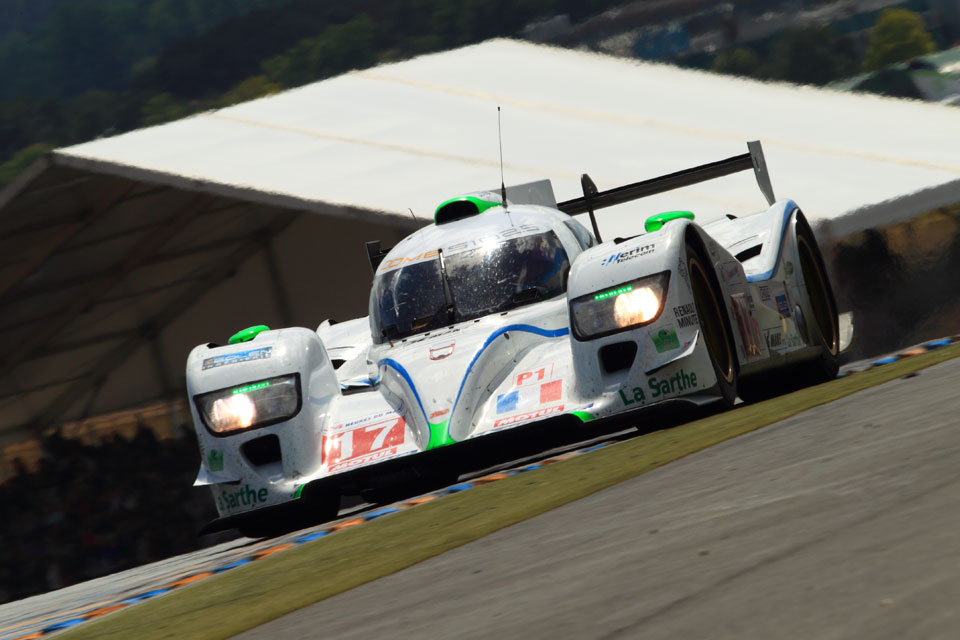

DOME S102.5 2012

解説

SPECIFICATION

• LENGTH: 4650mm
• WIDETH: 1995mm
• HEIGHT: 1025mm
• WHEELBASE: 2900mm
• FR.TREAD: 1640mm
• RR.TREAD: 1600mm
• FR.OVERHANG: 1000mm
• RR.OVERHANG: 750mm
• FR.RIDEHEIGHT: 55mm
• RR.RIDEHEIGHT: 65mm
• WEIGHT: DRY 830kg,WET 900kg,FR.48%,RR.52%, BALLAST 50kg,G.C HEIGHT 300mm
• ENGINE: MAKER JUDD,TYPE DB 3.4L V8 90DEG-V8-NA
• MANAGEMENT SYSTEM: EFI EURO12
• LENGTH: 516mm
• WIDETH: 633mm
• HEIGHT: 397mm
• WEIGHT: 118kg
• GEARBOX: MAKER XTRAC, TYPE 529+Integrated Bellhousing
• NO.of SPEED SQ-6speed WEIGHT 65kg, INPUT HEIGHT 92mm, DIFF C.HEIGHT 135mm
• CLUTCH MAKER: AP TYPE, 5.5”C/C 4PLATE PULL, RELEASE SYSTEM DOME+AP
• MONOCOQUE MAKER: DOME CARBON MAGIC, TYPE FULL COMPOSITE MONOCOQUE
• BODYWORK MAKER: DOME CARBON MAGIC TYPE CFRP
• FR.SUSPENSION: TYPE DOUBLE WISHBONE PUSH ROD TWIN DAMPER+COIL SPRING
• RR.SUSPENSION: TYPE DOUBLE WISHBONE PUSH ROD TWIN DAMPER + COIL SPRING
• DAMPERMAKER: DOME
• STRG.CONTROL: GEARBOX MAKER DOME, STEERING WHEEL DOME
• SHIFT CONTROL: ZYTEK
• BRAKE: CALIPER MAKER ALCON, ROTOR BREMBO, PAD BREMBO
• AXLE: UPRIGHT PANKL, FR.BEARING PANKL, RR.BEARING PANKL, WHEELNUT PANKL
• WHEEL: MAKER RAYS, TYPE FORGED MAGNESIUM, FR.WEIGHT 9.0kg, RR.WEIGHT 9.0kg
• TYRE: MAKER MICHELIN
• SAFETY HARNESS: TAKATA 6POINT, FIRE EXTINGUISHER FEV
• HEAD REST: DOME
• REAR VIEW MIRROR: DOME
• SEAT: DOME

戦績

• 予選: 10　決勝: 35NC
